Tilt Actuators
Tilt motor solutions for excavator couplers and bucket tilt. Two public series — HMT-A (12 frame sizes, 190 bar, 100°/140°/180° rotation options) and HMT-D (7 frame sizes, 210 bar, high holding torque). Send us any existing part code for cross-reference.

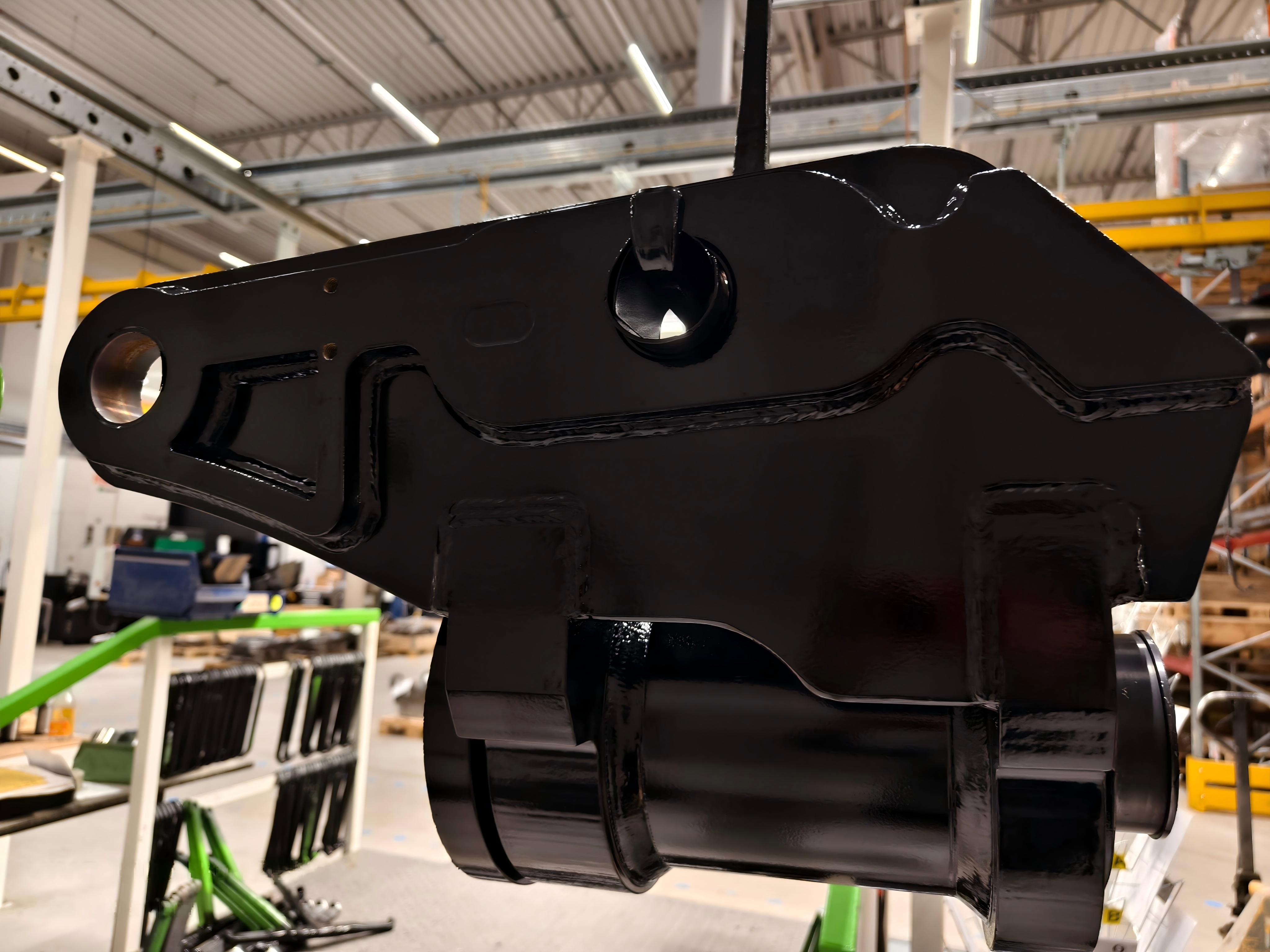

Standard tilt motor series for excavator tilt couplers. Twelve frame sizes cover micro to 50-ton excavators, with 100° / 140° / 180° rotation options at 190 bar. Driving and holding torque ratings are taken directly from the factory catalogue; exact mounting interface is confirmed against your machine drawing on inquiry.
Comparable class: HKS BVC / BVE series tilt actuators. Exact model match is confirmed against your unit tag and mounting drawing on inquiry.

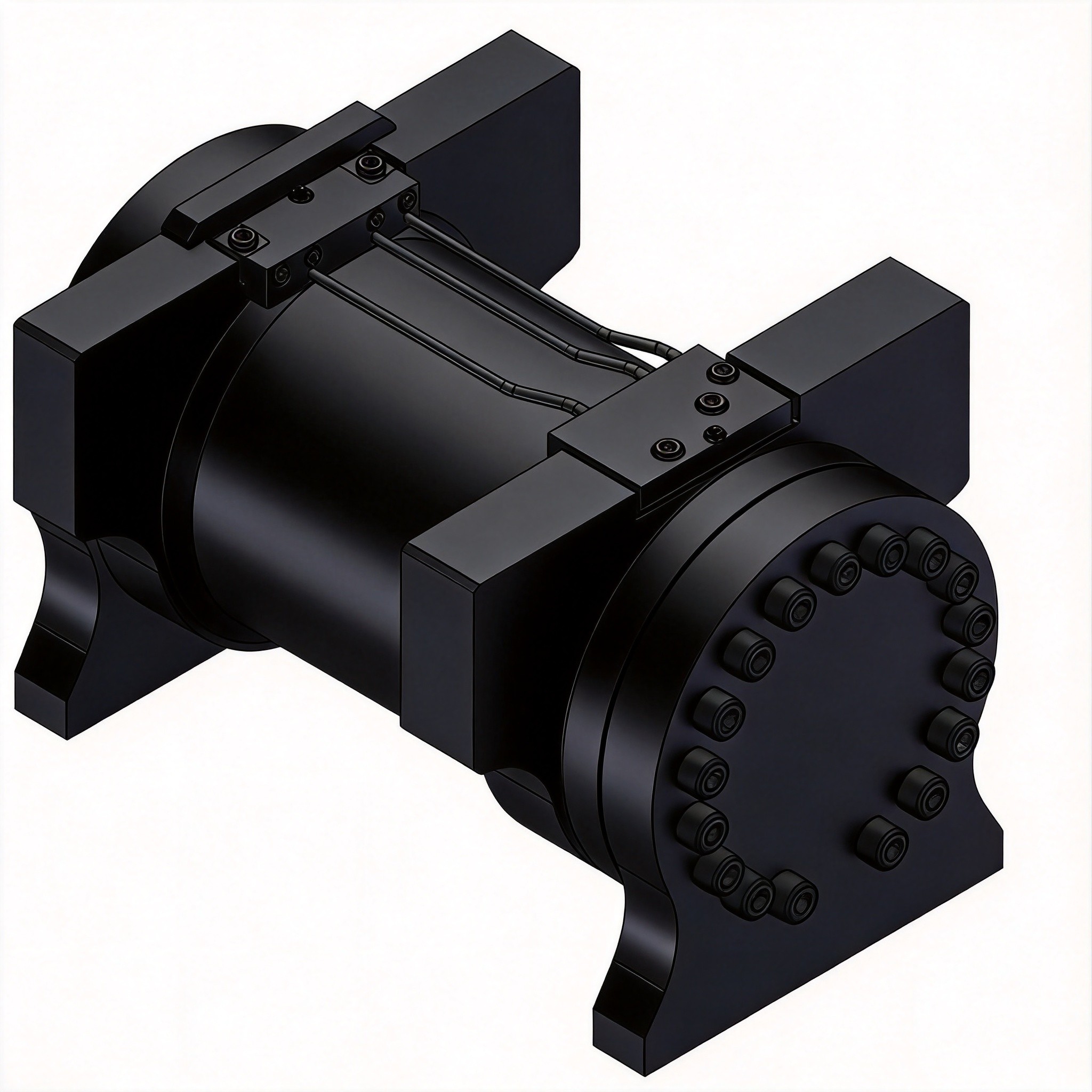

High holding-torque tilt motor series at 210 bar. Seven frame sizes cover 1.9–50-ton excavators, with 180° rotation on smaller frames and 120° on larger frames. Driving and holding torque ratings are taken directly from the factory catalogue; exact mounting interface is confirmed against your machine drawing on inquiry.
Comparable class: Helac PowerTilt / PT series. Exact model match is confirmed against your unit tag and mounting drawing on inquiry.
Specification table
Factory-catalogue values. Mounting interface confirmed on inquiry.
| HM Model | Rotation | Driving torque | Holding torque | Weight |
|---|---|---|---|---|
| HMT-A-01 | 180° | 800 Nm | 2,100 Nm | 22 kg |
| HMT-A-02 | 180° | 1,100 Nm | 4,300 Nm | 52 kg |
| HMT-A-03 | 180° | 2,000 Nm | 6,600 Nm | 62 kg |
| HMT-A-04 | 180° | 4,300 Nm | 11,000 Nm | 70 kg |
| HMT-A-05 | 180° | 7,400 Nm | 17,500 Nm | 104 kg |
| HMT-A-06 | 180° | 6,950 Nm | 16,500 Nm | 149 kg |
| HMT-A-07 | 180° | 10,500 Nm | 34,000 Nm | 206 kg |
| HMT-A-08 | 180° | 16,000 Nm | 40,000 Nm | 264 kg |
| HMT-A-09 | 180° | 20,000 Nm | 43,000 Nm | 344 kg |
| HMT-A-10 | 180° | 23,000 Nm | 54,000 Nm | 414 kg |
| HMT-A-11 | 140° | 33,000 Nm | 90,000 Nm | 622 kg |
| HMT-A-12 | 140° | 43,000 Nm | 100,000 Nm | 760 kg |
Specification table
Factory-catalogue values. Mounting interface confirmed on inquiry.
| HM Model | Rotation | Driving torque | Holding torque | Weight |
|---|---|---|---|---|
| HMT-D-02 | 180° | 1,625 Nm | 6,430 Nm | 31 kg |
| HMT-D-03 | 180° | 2,600 Nm | 9,350 Nm | 45.5 kg |
| HMT-D-04 | 180° | 4,375 Nm | 14,850 Nm | 78 kg |
| HMT-D-05 | 180° | 6,650 Nm | 20,450 Nm | 103 kg |
| HMT-D-06 | 120° | 13,300 Nm | 40,725 Nm | 180 kg |
| HMT-D-07 | 120° | 17,875 Nm | 53,100 Nm | 277 kg |
| HMT-D-08 | 120° | 24,900 Nm | 70,330 Nm | 318 kg |
Cross-reference by frame class
Cross-reference by frame class for evaluation; exact interchange confirmed against your unit tag and mounting drawing on inquiry.
| HM Model | Comparable model | Carrier (t) |
|---|---|---|
| HMT-A-01 | HKS BVC / BVE 100 | <1.8 |
| HMT-A-02 | HKS BVC / BVE 115 | 1.8~3.8 |
| HMT-A-03 | HKS BVC / BVE 125 | 3~5.5 |
| HMT-A-04 | HKS BVC / BVE 130 | 4~6.8 |
| HMT-A-05 | HKS BVC / BVE 160 | 6.5~9 |
| HMT-A-06 | HKS BVC / BVE 180 | 8.5~11 |
| HMT-A-07 | HKS BVC / BVE 240S5415 / S5416 | 11~18 |
| HMT-A-08 | HKS BVC / BVE 250S5418 / S5419 | 15~23 |
| HMT-A-09 | HKS BVC / BVE 260S5421 / S5422 | 22~26 |
| HMT-A-10 | HKS BVC / BVE 270S5424 / S5425 | 25~29 |
| HMT-A-11 | HKS BVC / BVE 300S5427 | 28~38 |
| HMT-A-12 | HKS BVC / BVE 350S5430 | 37~50 |
| HM Model | Comparable model | Carrier (t) |
|---|---|---|
| HMT-D-01 | Helac PowerTilt PT4.5 | <1.8 |
| HMT-D-02 | Helac PowerTilt PT-030 | 1.9~3 |
| HMT-D-03 | Helac PowerTilt PT-050 | 3~5 |
| HMT-D-04 | Helac PowerTilt PT-070 | 5~7 |
| HMT-D-05 | Helac PowerTilt PT-100 | 7~10 |
| HMT-D-06 | Helac PowerTilt PT-180 | 11~18 |
| HMT-D-07 | Helac PowerTilt PT-240 | 18~23 |
| HMT-D-08 | Helac PowerTilt PT-300 | 24~27 |
HMT order codes are configurable for quotation. The mounting interface, port orientation, and shaft details must be confirmed against your coupler drawings before release. Contact our engineering team with machine tonnage, required tilt angle, torque, and comparable reference.
Tell us your machine type / tonnage, required tilt angle, torque or comparable model. If you have an existing tilt motor code — such as HKS BVC/BVE, Helac PowerTilt/PT, or another manufacturer reference — include it below and we will cross-check it against our HMT-A/D build options.
